BRIM COMMUNICATION CABLES

UL UNSHIELDED COMMUNICATION - COMPUTER - AUDIO - INTERCOM
CABLE  UL 2464

DESCRIPTION:  Each conductor UL Type 1061, 24 AWG 7/32 T.C., UL VW-1.  Conductors are cabled,
then a .032" Gray 105°C UL VW-1 PVC jacket overall.  Color coded.  Cable meets UL Style 2464.
Suitable as an unshielded computer cable,  communication, intercom or audio cable.
RoHS compliant constructions are available to order.  OPER. TEMP.: -40°C to +105°C.
OPER. VOLT.: 300V UL     See color code for multi-conductor cables.
STD. P-U: 500’, 1000’

BRIM No. No. Conds. AWG Strand. Nom. Wall Nom. Jack. Nom. O.D.
3014/12         12   24    7/32     .009"     .032"     .255"
3014/25         25   24    7/32     .009"     .032"     .315"

UNSHIELDED MULTI-CONDUCTOR STRANDED AUDIO CABLE

DESCRIPTION:  Each conductor 22 AWG 7/30 TC, .010" wall of PVC, twisted, cabled, Gray PVC
jacket  overall.   Suitable for PA systems, unshielded computer cable, indoor or outdoor intercom
systems,  signal systems,  nurse's call systems, annunciators, control circuit cables, multi-speaker
systems.  Color coded.   OPER. TEMP.: -40°C to +80°C  OPER. VOLT.: 200V.
RoHS compliant constructions are available to order.
See color code for multi-conductor cables.      STD. P-U: 100',1000'



BRIM
No.		   No.
Cond.		  AWG/
Strand.		 Nom.
Wall		 Nom.
Jack.		 Nom.
O.D.		 BRIM
No.		   No.
Cond.		  AWG/
Strand.		 Nom.
Wall		 Nom.
Jack.		 Nom.
O.D.
3012/2     2 22-7/30 .010" .020" .140" 3012/10    10 22-7/30 .010" .020" .235"
3012/3     3 22-7/30 .010" .020" .145" 3012/12    12 22-7/30 .010" .020" .255"
3012/4     4 22-7/30 .010" .020" .160" 3012/15    15 22-7/30 .010" .020" .280"
3012/5     5 22-7/30 .010" .020" .175" 3012/20    20 22-7/30 .010" .025" .320"
3012/6     6 22-7/30 .010" .020" .185" 3012/25    25 22-7/30 .010" .025" .350"
3012/7     7 22-7/30 .010" .020" .190" 3012/30    30 22-7/30 .010" .025" .375"
3012/8     8 22-7/30 .010" .020" .200" 3012/40    40 22-7/30 .010" .030" .435"
3012/9     9 22-7/30 .010" .020" .225" 3012/50    50 22-7/30 .010" .035" .500"
3012/60    60 22-7/30 .010" .040" .540"

See color code for multi-conductor cables.

 BRIM UNSHIELDED DIRECT BURIAL COMMUNICATION CABLE

DESCRIPTION:  2 conductors 18 AWG 16/30 TC, .018" wall  80°C PVC, conductors are twisted, high
molecular weight Black Polyethylene jacket overall.    Suitable as an unshielded computer cable,
communication, speaker extensions,  PA systems, paging systems, intercom or audio cable, or other
heavy duty applications.  Outer jacket is resistant to severe weather conditions.
RoHS compliant constructions are available to order.  OPER. VOLT.: 600V UL.
OPER. TEMP.: -40°C to +80°C.   Color Code: 1-Black, 2-Red     STD. P-U: 500’, 1000’

BRIM No. No. Conds. AWG Strand. Nom. Wall Nom. Jack. Nom. O.D.
3015/18          2   18   16/30     .018"      .030"     .226"

Other constructions are available to order.

HEAVY DUTY UNSHIELDED TWISTED-PAIRED COMMUNICATION CABLE

DESCRIPTION:  Each conductor 18 AWG 16/30 TC, .016" wall of PVC, twisted, cabled, heavy duty
Gray PVC jacket overall.   Abrasion resistant.   Suitable for heavy duty intercom systems, signal
systems, nurse's call systems, annunciators, control circuit cables, multi-speaker systems.  Color
coded.   OPER. TEMP.: -40°C to +80°C  OPER. VOLT.: 400V.    See color code for paired cables.
RoHS compliant constructions are available to order.     STD. P-U: 500',1000'

BRIM
No.		   No.
Pairs		   No.
Cond.		 AWG Strand. Nom.
Wall		 Nom.
Jack.		 Nom.
O.D.
3018/3     3     6   18   16/30 .016" .035" .360"
3018/6     6    12   18   16/30 .016" .045" .545"
3018/9     9    18   18   16/30 .016" .055" .620"
3018/12   12    24   18   16/30  .016" .055" .655"
3018/15   15    30   18   16/30 .016" .060" .780"
3018/19   19    38   18   16/30 .016" .070" .840"
3018/27   27    54   18   16/30 .016" .070" .970"

OTHER CONSTRUCTIONS ARE AVAILABLE TO ORDER.


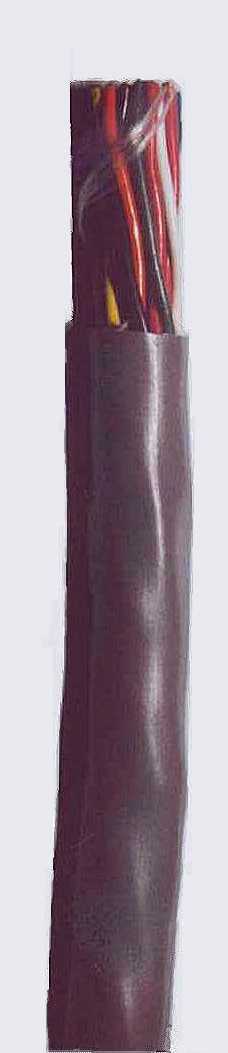

UNSHIELDED TWISTED-PAIRED STRANDED COMMUNICATION CABLE

DESCRIPTION:  Each conductor 22 AWG 7/30 TC, .010" wall of PVC, twisted, cabled, Gray PVC
jacket overall.   Suitable for indoor or outdoor intercom systems,  signal systems,  nurse's call
systems, annunciators, control circuit cables, multi-speaker systems.  Color coded.
OPER. TEMP.: -40°C to +80°C OPER. VOLT.: 200V.    See color code for paired cables.
RoHS compliant constructions are available to order.    STD. P-U: 100',1000'

BRIM
No.		   No.
Pairs		   No.
Cond.		 AWG Strand. Nom.
Wall		 Nom.
Jack.		 Nom.
O.D.
3022     1     2   22    7/30 .010" .020" .140"
3022/2     2     4   22    7/30 .010" .020" .215"
3022/3     3     6   22    7/30 .010" .020" .228"
3022/4    4     8   22    7/30  .010" .020" .250"
3022/5    5    10   22    7/30 .010" .020" .280"
3022/6    6    12   22    7/30 .010" .020" .290"
3022/9    9    18   22    7/30 .010" .020" .340"
3022/11   11    22   22    7/30 .010" .025" .380"
3022/15   15    30   22    7/30 .010" .025" .420"
3022/19   19    38   22    7/30 .010" .030" .460"
3022/23   23    46   22    7/30 .010" .030" .510"
3022/27   27    54   22    7/30 .010" .035" .588"
3022/31   31    62   22    7/30 .010" .035" .635"
3022/41   41    82   22    7/30 .010" .040" .710"
3022/51   51   102   22    7/30 .010" .045" .800"


UNSHIELDED TWISTED-PAIRED SOLID COMMUNICATION CABLE

DESCRIPTION:  Each conductor 22 AWG solid TC, .010" wall of PVC, twisted, cabled, Gray PVC
jacket  overall.   Suitable for indoor or outdoor intercom systems,  signal systems,  nurse's call
systems, annunciators, control circuit cables, multi-speaker systems.   Color coded.
OPER. TEMP.: -40°C to +80°C  OPER. VOLT.: 200V. See color code for paired cables.
RoHS compliant constructions are available to order.    STD. P-U: 100',1000'

BRIM
No.		   No.
Pairs		   No.
Cond.		 AWG Strand. Nom.
Wall		 Nom.
Jack.		  Nom.
 O.D.
3022S      1     2   22      1 .010" .020"  .130"
3022S/2      2     4   22      1 .010" .020"  .200"
3022S/3      3     6   22      1 .010" .020"  .210"
3022S/6     6    12   22      1  .010" .020"  .265"
3022S/9     9    18   22      1 .010" .020"  .310"
3022S/11    11    22   22      1 .010" .025"  .340"
3022S/13    13    26   22      1 .010" .025"  .360"
3022S/15    15    30   22      1 .010" .025"  .383"
3022S/19    19    38   22      1 .010" .030"  .446"
3022S/27    27    54   22      1 .010" .035"  .511"
3022S/31    31    62   22      1 .010" .035"  .555"
3022S/41    41    82   22      1 .010" .035"  .630"
3022S/51    51   102   22      1 .010" .045"  .735"
3022S/76    76   152   22      1 .010" .070"  .970"
3022S/101   101   202   22      1 .010" .080" 1.140"


    FLAT/MODULAR TELEPHONE CABLES                   (NEW)



DESCRIPTION: 4, 6 or 8 conductors of 26 AWG 7/34 or 28 AWG 7/36 bare copper
PP insulation, 80°C, Silver Satin PVC jacket overall.  Suitable for extending
telephone lines or other low amperage lines.   RoHS compliant.

   No.
Conds.		                                 COLOR  CODE
    4 1-BLK,2-RED,3-GRN,4-YEL
    6 1-WH,2-BLK,3-RED,4-GRN,5-YEL,6-BLUE
    8 1-GRAY,2-WH,3-BLK,4-RED,5-GRN,6-YEL,7-BLUE,8-BRN
BRIM
No.		   No.
Cond.		 AWG Strand.  Nom. O.D.  Std.
 P-U
1904/28     4   28     7/36 .095"x.195" 1000'
1904/26     4   26     7/34 .095"x.195" 1000'
1906/28     6   28    7/36 .095"x.265" 1000'
1906/26     6   26    7/34 .095"x.265" 1000'
1908/28     8   28    7/36 .095"x.335" 1000'
1908/26     8   26    7/34 .095"x.335" 1000'

TINSEL CONDUCTOR AND 30 AWG CONDUCTORS ARE AVAILABLE TO ORDER.
MODULAR PLUGS ON ENDS ARE AVAILABLE TO ORDER.
TPE AND PU JACKETED CABLE OR OTHER JACKET COLORS ARE AVAILABLE TO ORDER.


BRIM ELECTRONICS, INC. 120 HOME PLACE    LODI, NJ 07644
TEL: 201-796-2886     FAX: 973-778-2792     E-MAIL: info@brimelectronics.com
