NEWS RELEASE

BRIM ELECTRONICS, INC. ANNOUNCES THE INTRODUCTION OF A NEW SERIES
OF RETRACTILE CORDS: BRIM'S FIBER OPTIC RETRACTILE CORDS.

THESE CORDS ARE MADE FROM AN INDUSTRY STANDARD 62.5MM SIMPLEX
GLASS FIBER INNER CORE, THEN AN ACRYLATE FIBER COATING, A 900UM
DIAMETER ELASTOMERIC BUFFERED OPTICAL FIBER, A KEVLAR COATING FOR
STRENGTH, AND A FLAME RETARDANT BLACK PU JACKET OVERALL, FOR GOOD
ABRASION PROTECTION AND SPRINGINESS.

THESE CORDS ARE DESIGNED FOR LONG-LIFE EXTENSION/ RETRACTION APPLIC-
ATIONS.  BY PUTTING THE CABLE ON LARGER THAN NORMAL MANDRELS WE ARE
ABLE TO ACHIEVE AN APPROXIMATE 11:1 EXTENSION/RETRACTION RATIO.  OUR
CORDS ARE RUN 10", 16" & 23" RETRACTED, FOR APPROXIMATE 9 3/4FT., 16 1/4FT.
& 22 3/4FT. EXTENDED LENGTHS.

FOR FURTHER INFORMATION, INCLUDING PRICING AND DELIVERY, CONTACT MATTHEW AARON @
TEL:201-796-2886, FAX:973-778-2792, OR E-MAIL: info@brimelectronics.com.

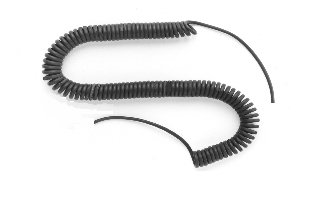

     BRIM FIBER OPTIC RETRACTILE CORDS

DESCRIPTION: AN INDUSTRY STANDARD 62.5MM SIMPLEX GLASS FIBER INNER
CORE, WITH AN ACRYLATE FIBER COATING, A 900UM DIAMETER ELASTOMERIC
BUFFERED OPTICAL FIBER, A KEVLAR COVERING FOR STRENGTH, AND A FLAME
RETARDANT BLACK PU JACKET OVERALL.  THIS FIBER OPTIC RETRACTILE CORD
IS DESIGNED FOR LONG-LIFE EXTENSION/ RETRACTION APPLICATIONS.   WE PUT
THIS CABLE ON SLIGHTLY OVERSIZED MANDRELS TO ACHIEVE LONGER (11 TO 1)
EXTENSION/RETRACTION RATIOS.

A 10" RETRACTED CORD WILL EXTEND TO APPROXIMATELY 10FT., A 16" CORD TO
APPROXIMATELY 16FT., & 23" RETRACTED WILL EXTEND TO APPROXIMATELY 22
FT., WITH 6" STRAIGHT ENDS CUT BLUNT FOR CUSTOM TERMINATION’S.

OPER.TEMP.: -55°C TO +85°C.   INSERTION LOSS IS LESS THEN 1 DB PER CORD.

BRIM
NO.

RETRACTED
  LENGTH

EXTENDED
  LENGTH

NOM. O.D.
  CABLE

NOM. O.D.
    COIL

STD.
 P-U

116-10"

       10"

     9.75ft.

    .115"

    .650"

   6

116-16"

       16"

   16.25ft.

    .115"

    .650"

   6

116-23"

       23"

   22.75ft.

    .115"

    .650"

   6

EXTENDED LENGTHS OF UP TO 46FT. CAN BE RUN TO ORDER.

DUPLEX FIBER OPTIC RETRACTILE CORDS CAN BE RUN TO ORDER.
