MICROPHONE CABLES

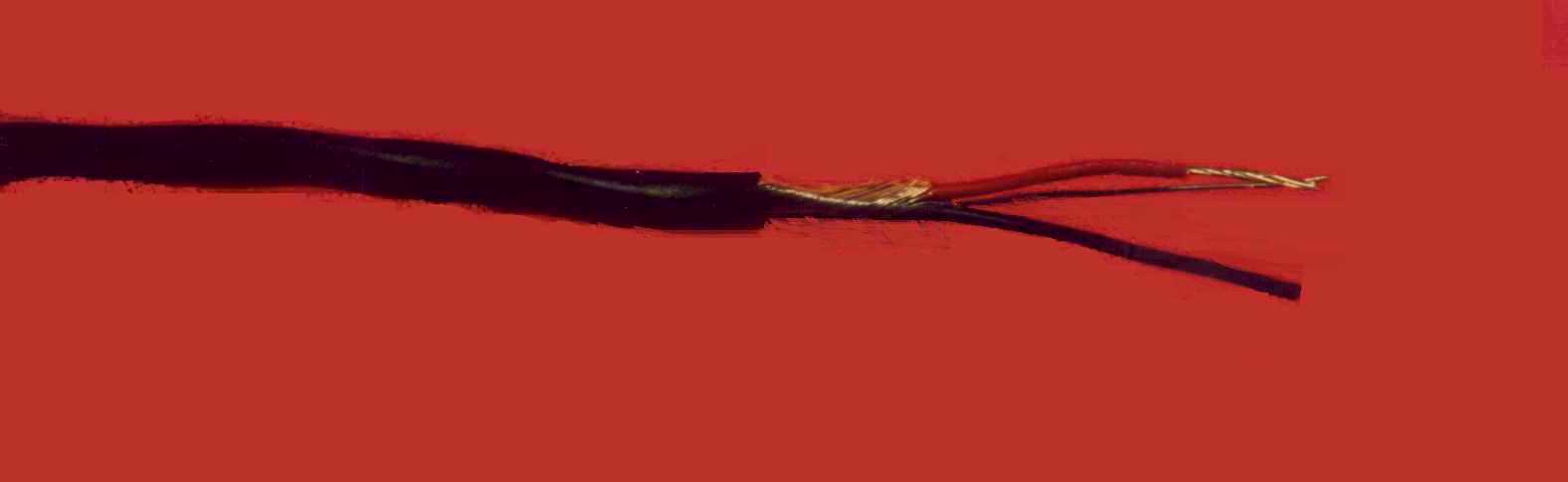

              SHIELDED MICROPHONE CABLE

DESCRIPTION: 2 Cond. stranded tinned copper .016" wall polyethylene, fillers, mylar
wrap, tinned
copper shield, .030" high-gloss Black PVC jacket overall.  Nom. Cap./ft.
between one conductor and remaining conductor connected to shield:
1884/24 -- 38MMF, 1884/22 -- 31MMF.   OPER. VOLT.: 1000V.
OPER. TEMP.: -20°C to +80°C.
COLOR CODE: 1-Black, 2-Red.
RoHS compliant constructions are available to order.   STD. P-U: 500', 1000'.

BRIM No.

No. Cond.

AWG-Strand.

Type of Shield

Nom. Jack.

Nom. O.D.

1884/24

        2

     24-10/34

         Spiral

      .016"

     .190"

1884/22

        2

     22-16/34

         Braid

      .025"

     .240"


              HEAVY DUTY MICROPHONE CABLE

DESCRIPTION: 2 conductor 18 AWG stranded tinned copper .025" wall polyethylene, fillers,
clear mylar
wrap, braided inned copper shield, .030" high abrasion resistant high-gloss Black
soft flexible PVC jacket
overall.   Suitable as a studio cable.   OPER. VOLT.: 1000V.
Nom. Cap. between conductors: 75Pf/ft.
Nom. Cap.  between one conductor and remaining
conductor connected to shield: 45Pf/ft.
 RoHS compliant constructions are available to order.
OPER. TEMP.: -20°C to +80°C.    COLOR CODE: 1-Black, 2-Red.     STD. P-U: 500', 1000'.

BRIM No.

No. Cond.

AWG-Strand.

Type of Shield

Nom. Wall

Nom. Jack.

Nom. O.D.

1885

        2

     18-41/34

         Braid

      .025"

      .030"

      .295"



  ULTRA-LOW CAPACITY MICROPHONE CABLE

DESCRIPTION: 1 or 2 conductors stranded tinned copper, white foam polyethylene dielectric,
braided tinned
copper shield, soft & flexible Chrome PVC jacket overall.   Our foam Polyethylene
dielectric construction
has as much as 50% lower capacitance and attenuation than standard
Polyethylene constructions.   This
increases the effective length of cable by as much as 50%
without signal loss.   Two conductor construction
is cabled with fillers, with a textile wrap under
shield.    OPER. TEMP.: -20°C to +80°C.
COLOR CODE: 1-White, 2-Black.
RoHS compliant constructions are available to order.
STD. P-U: 500', 1000'.

BRIM
No.

  No.
Cond.

  AWG-
 Strand.

Cap./ft.

Nom.
Wall

Nom.
Jack.

Nom.
O.D.

1676

    1

26-7/34*

  30 Pf.

.017"

.020"

.115"

1677

    1

24-10/34

  20 Pf.

.035"

.030"

.180"

1678

    1

24-10/34

  15 Pf.

.055"

.030"

.224"

1679

    2

22-16/34

  11 Pf.

.035"

.030"

.298"

*3 strands Tinned Copper, 4 strands Tinned Copperweld.


  SHIELDED PLASTIC MICROPHONE CABLE



DESCRIPTION: 1 conductor stranded tinned copper, white Polyethylene dielectric, spiral or
braided tinned
copper shield, rugged oil & moisture resistant hi-gloss, soft & flexible Chrome
PVC jacket overall.

Low  capacitance & low attenuation.    OPER. TEMP.: -20°C to +80°C.
1682-- For hi-impedance microphones.  1683-- For crystal, ribbon, etc. mikes.
1684-- For hi-impedance lapel michrophones.
RoHS compliant constructions are available to order.
STD. P-U: 500', 1000'.

BRIM
No.

  No.
Cond.

 AWG-
Strand.

Oper.
Volt.

Shield
 Type

Cap./ft.

Nom.
Wall

Nom.
Jack.

Nom.
O.D.

1680

    1

 25-7/33

 3000

Spiral

  23 Pf.

.044"

.025"

.160"

1681

    1

 25-7/33

 1000

Spiral

  33 Pf.

.024"

.025"

.129"

1682

    1

20-26/34

 4000

Braided

23.3 Pf.

.037"

.019"

.176"

1683

    1

25-7/33*

 3500

Braided

  34 Pf.

.041"

.020"

.145"

1684

    1

25-7/33*

 5000

Braided

  23 Pf.

.063"

.021"

.190"

*3 strands Tinned Copper, 4 strands Tinned Copperweld.



       MICROPHONE - REMOTE - CONTROL CABLE

DESCRIPTION: Each conductor stranded TC .014" wall polyethylene, cabled with fillers, mylar wrap,
braided TC shield, chrome PVC jacket overall.   OPER. TEMP.: -20°C to +80°C. OPER. VOLT.: 1000V.

BRIM
No.

  No.
Cond.

AWG

Strand.

Nom.
Wall

Nom.
Jack.

Nom.
O.D.



BRIM
No.

  No.
Cond.

AWG

Strand.

Nom.
Wall

Nom.
Jack.

Nom.
O.D.

1883/2

     2

   20

  26/34

.014"

 .032"

 .221"



1883/8

    8

   20

  26/34

.014"

 .035"

.325"

1883/3

     3

   20

  26/34

.014"

 .035"

 .250"



1883/10

   10

   20

  26/34

.014"

 .035"

.370"

1883/4

     4

   20

  26/34

.014"

 .035"

 .260"



1883/12

   12

   20

  26/34

.014"

 .035"

.380"

1883/5

     5

   20

  26/34

.014"

 .035"

 .275"



1883/15

   15

   20

  26/34

.014"

 .035"

.405"

1883/6

     6

   20

  26/34

.014"

 .035"

 .295"



1883/20

   20

   20

  26/34

.014"

 .035"

.445"

COLOR CODE: 1-White, 2-Black, 3-Red, 4-Green, 5-Yellow, 6-Blue, 7-Brown, 8-Orange, 9-Purple,
10-Gray,
11-White/Black, 12-White/Red, 13-White/Green, 14-White/Yellow, 15-White/Blue,
16-White/Brown,
17-White/Purple, 18-White/gray, 19-Black/Red, 20-Black/Yellow.
STD. P-U: 500', 1000'

RoHS compliant constructions are available to order.         Other constructions are available to order.
