BRIM MIL SPEC & COMMERCIAL
 CO-AX CABLES -- CATV CABLE

         BRIM COMMERCIAL RG 59/U CO-AX CABLE

DESCRIPTION: A type RG 59/U construction, composed of 22(1) bare Copperweld, .055" wall
of  cellular Polyethylene dielectric, 4x28 AWG drain wires over an Aluminum Polypropylene tape
shield, for 100% coverage, and a Black* PVC jacket overall.    MAX. OPER. VOLTAGE: 500V RMS.
OPER. TEMP.: -40°C to +80°C    Dielectric Strength: 1000V RMS.
RoHS compliant constructions are available to order.  STD. P-U: 1000’

ATTENUATION RATINGS FOR BC-59/U

 211 MHz    83 MHz    30MHz      2MHz
   CH. 13    CH. 6    ------     ------
4.0db/100' 2.3db/100' 1.4db/100' 0.34db/100'
BRIM No. AWG  % of
Shield		 Nom. Imp. Nom.Vel.
 of  Prop.		 Nom. Cap.
   Pf/ft. 		 Wall
Thick.		  Jack.
Thick.		 Nom.
O.D.
BC-59/U  22(1) 100%  75 Ohms     81%       17  .058"  .042" .242"

*OTHER JACKET COLORS ARE AVAILABLE TO ORDER.

BRIM RG 59/U CATV CO-AX CABLE

DESCRIPTION:  A type RG59/U construction, composed of 20(1) bare Copperweld, .058" wall
of cellular Polyethylene dielectric, an Aluminum polypropylene over Aluminum tape shield (100%
coverage), a 42% Aluminum braided shield over the tape, and a Black* PVC jcaket overall.
MAX. OPER. VOLT.: 500V RMS.  Dielectric strength: 1000V RMS.  OPER. TEMP.: -40°C to +80°C
RoHS compliant constructions are available to order.

ATTENUATION RATINGS FOR BCAC-59

    83 MHz    211 MHz     270MHz     300MHz
     CH. 6     CH.13    ------    ------
2.20db/100' 3.70db/100' 4.25db/100' 4.50db/100'
BRIM No. AWG  % of
Shield		 Nom. Imp. Nom.Vel.
 of  Prop.		 Nom. Cap.
   Pf/ft. 		 Wall
Thick.		  Jack.
Thick.		 Nom.
O.D.
BCAC-59 20(1)  42%  75 Ohms     80%      17.1  .058"  .032" .242"

*OTHER JACKET COLORS ARE AVAILABLE TO ORDER.

BRIM MIL SPEC TEFLON CO-AX CABLES
MIL-C-17  CO-AX CABLES -- FEP & TFE TEFLON* DIELECTRIC

DESCRIPTION: TFE Teflon* dielectric over a solid or stranded Silver plated copperweld conductor,
Silver plated copper braided shield, an FEP or TFE Teflon* jacket overall.  These cables combine
high temperature with miniaturization.  Jackets are weatherproof and resistant to fuels, solvents,
alkalis, oils, flame & yet are still highly flexible.
Oper. Temp.: (FEP) -55°C to +200°C  (TFE) -55°C to +250°C.                              Std. P-U: 500',1000'

BRIM No.  MIL Type     AWG-Cond./
       Strand.		  % of
Shield		 Nom. Imp.
  (Ohms)		 Nom.Vel.
 of  Prop.		 Nom. Cap.
   (Pf/ft.) 		Max.
Volt.		 **Nom.
 Atten.		 Jack.
Type		 Nom.
O.D.
B142B/U RG142B/U .039SCW  95%       50   69.5%      29.4 1900     8db  FEP .195"
B178B/U RG178B/U 30(7/38)SCW  95%       50   69.5%      29.4 1000   28db  FEP .072"
B179B/U RG179B/U 30(7/38)SCW  95%       75   69.5%      19.5 1200   18db  FEP .100"
B180B/U RG180B/U 30(7/38)SCW  95%       95   69.5%      15.4 1500   16db  FEP .142"
B187A/U RG187A/U 30(7/38)SCW  95%       75   69.5%      19.5 1200   18db  TFE .105"
B188/U RG188/U 26(7/.0067)SCW  95%       50   69.5%      29.4 1200   17db  TFE .105"
B188A/U RG188A/U 26(7/.0067)SCW  95%       50   69.5%      29.4 1200   17db  TFE .105"
B195/U RG195/U 30(7/38)SCW  95%       95   69.5%      15.4 1500   16db  TFE .150"
B195A/U RG195A/U 30(7/38)SCW  95%       95   69.5%      15.4 1500   16db  TFE .150"
B196/U RG196/U 30(7/38)SCW  95%       50   69.5%      29.4 1000   28db  TFE .078"
B196A/U RG196A/U 30(7/38)SCW  95%       50   69.5%      29.4 1000   28db  TFE .078"
B316/U RG316/U 26(7/.0067)SCW  95%       50   69.5%      29.4 1200   17db  FEP .102"

**@ 400MHz.                                               SCW= SILVER PLATED COPPERWELD
Other MIL-C-17 Teflon* RG cables are available to order.
Plenum rated RG59/U & RG62A/U FEP CO-AX cables are available to order.                      *DuPont.

BRIM MIL SPEC POLYETHYLENE CO-AX CABLES
MIL-C-17  CO-AX CABLES -- POLYETHYLENE DIELECTRIC

DESCRIPTION: Polyethylene dielectric over a solid or stranded bare or tinned plated copperweld
or copper conductor, bare or tinned plated copper braided shield, Black non-contaminating PVC
jacket overall.    Jackets are weatherproof and resistant to many chemicals.
RoHS compliant constructions are available to order.
Oper.Temp.:-40°C to +80°C.                                             Std. P-U: 500',1000'

BRIM No.  MIL Type   AWG-Cond./
      Strand.		  % of
Shield		 Nom. Imp.
  (Ohms)		 Nom.Vel.
 of  Prop.		 Nom. Cap.
   (Pf/ft.) 		Max.
Volt.		 *Nom.
Atten.		 Jack.
Type		 Nom.
O.D.
B8A/U RG8A/U 13(7/21)BC  95%       52     66%      29.5 4000   4.5db  PVC .405"
B11A/U RG11A/U 18(7/26)TC  95%       75     66%      20.5 5000   4.5db  PVC .405"
B58B/U RG58B/U   20(1)BC  95%     53.5     66%      28.5 1900   9.2db  PVC .195"

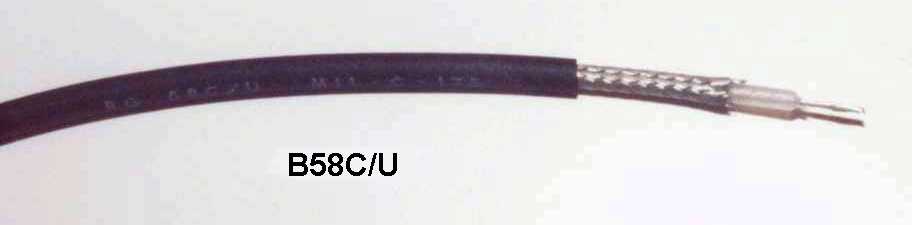

B58C/U RG58C/U 20(19/33)TC  95%       50     66%      30.8 1900 12.6db  PVC .195"
B62A/U RG62A/U   22(1)CW  95%       93     84%      13.5   750   5.3db  PVC .242"
B174A/U RG174A/U 26(7/34)CW  95%       50     66%      30.8 1500 20.0db  PVC .100"
B213/U RG213/U 13(7/.0296)BC  95%       50     66%      30.8 5000   4.8db  PVC .405"

*@ 400MHz                           BC= Bare Copper     CW= Copperweld      TC= Tinned Copper


BRIM MIL SPEC POLYETHYLENE TWINAXIAL CABLES
MIL-C-17  TWIN-AX CABLES -- POLYETHYLENE DIELECTRIC

DESCRIPTION: Two conductors of Polyethylene dielectric insulation over a stranded bare or tinned
plated copper conductor, one or two tinned plated copper braided shields, Black non-contaminating
PVC jacket overall.    Jackets are weatherproof and resistant to many chemicals.
Oper. Temp.:-40°C to +80°C   RoHS compliant constructions are available to order.  Std. P-U: 500',1000'


BRIM No.  MIL Type    No. Cond./
     Strand.		  % of
Shield		 Nom. Imp.
  (Ohms)		 Nom.Vel.
 of  Prop.		 Nom. Cap.
   (Pf/ft.) 		Max.
Volt.		 *Nom.
Atten.		 Jack.
Type		 Nom.
O.D.
B22B/U RG22B/U 2-7/.0152BC+  95%       95     65.9%      16.0 1000  6.3db  PVC .420"
B108A/U RG108A/U 2-20(7/28)TC  85%       78     66%      19.6 1000 16.0db  PVC .235"

*db/100ft. @ 400MHz                   +1strand on one conductor is tinned copper for identicication.

OTHER RG CONSTRUCTIONS INCLUDING TRIAXIAL CABLE CONSTRICTIONS ARE AVAILABLE TO
ORDER.   CONSTRUCTIONS USING A GEON** JACKET FOR MORE MECHANICAL PROTECTIONS IS
AVAILABLE  TO ORDER.      **B.F.GOODRICH


BRIM MINIATURE & ULTRA-MINIATURE ULTRA-FLEXIBLE CO-AX CABLES

DESCRIPTION: Miniature & ultra-miniature, flexible CO-AX cables. All cables are run with very flexible bare copper conductors, .008" to .005"
PP resin for good dielectric properties, a 44 AWG braided tinned copper shield, 90% minimum coverage, a .012" to .010" white 90°C PVC jacket overall.
MAX. OPER. VOLTAGE: 100V RMS. OPER. TEMP.: -40°C to +80°C Dielectric Strength: 1000V RMS. STD. P-U: 1000’

ATTENUATION RATINGS

BRIM No. 1000 MHz
   /100'		 100 MHz
    /100'		 10MHz
   /100'		 1MHz
 /100'
B2646U   47.79db  15.02db  4.74db 1.50db
B2846U   50.45db  15.77db  4.97db 1.57db
B3046U   71.72db  22.59db  7.13db 2.26db
B3250U   71.70db  22.42db  7.06db 2.23db
B3450U   77.52db  24.24db  7.64db 2.41db
B3650U   80.49db  25.18db  7.94db 2.51db
B3850U   87.79db  27.49db  8.67db 2.74db


BRIM No.     AWG  % of
Shield		 Nom. Imp. Nom.Vel.
 of  Prop.		 Nom. Cap.
   Pf/ft. 		 Wall
Thick.		  Jack.
Thick.		 Nom.
O.D.
B2646U  26(105/46)  90% 28.0 Ohms   66.09%      55.00  .008"  .012" .069"
B2846U  28(65/46)  90% 36.9 Ohms   66.7%      41.40  .008"  .012" .064"
B3046U  30(41/46)  90% 31.0 Ohms   65.9%      50.00  .005"  .010" .051"
B3250U  32(65/50)  90% 38.79 Ohms   64.8%      41.50  .005"  .010" .048"
B3450U   34(40/50)  90% 43.2 Ohms   66.7%      35.30  .005"  .010" .046"
B3650U  36(25/50)  90% 51.85 Ohms   63.5%      32.06  .005"  .010" .045"
B3850U  38(16/50)  90% 59.0 Ohms   62.9%      30.90  .005"  .010" .044"

*OTHER JACKET COLORS ARE AVAILABLE TO ORDER.
Other jacket thicknesses are available to order.
Different inner conductor resins, such as PVC, PE, TPE or FEP, & different wall thicknesses,
are available to order, however, any change will change the electricals shown above.
RoHS compliant constructions are available to order.
