BRIM BANANA JACKS


               BRIM INSULATED BANANA JACKS

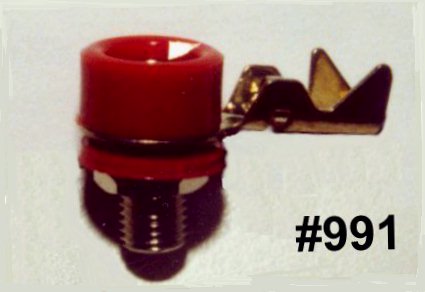

INSULATED BANANA JACKS

MATERIAL: Body is brass nickel plated, molded nylon head.  Mounts in a 5/16" hole in panels
up to 3/8" thick.  Supplied with a brass nickel plated hex nut, insulating shoulder washer and
either a wrap-around terminal, tinned brass lug terminal or a tinned brass lock-washer terminal.
Accept all standard banana plugs.  15 AMPS AC, 4.0 MMFD. Std. Colors: Red, Black  (Specify)




Brim
No.		   O/A
   Ht.		  Head
   Ht.		  Head
Diam.		  Head
Open.		 Thread
  Size		 Std.
Pkg
906 21/32" 15/64"  7/16"  .163"  1/4-32 100
981 15/16" 15/64"  7/16"  .163"  1/4-32 100

               BRIM ALL METAL BANANA JACKS

ALL METAL BANANA JACK

MATERIAL: Body is brass nickel plated, hex shaped, brass nickel
plated hex nut and brass tinned lug terminal, recessed head,
1/4-32 thread.  Mounts in 1/4" hole on panels up to 3/8" thick.
Accepts all standard banana plugs. 15 AMPS.

Brim
No.		   O/A
Height		  Head
Height		  Head
Diam.		  Head
Open.		 Thread
Length		 Std.
Pkg.
916    5/8"   1/8"  5/16"  .163"    1/2"  100
